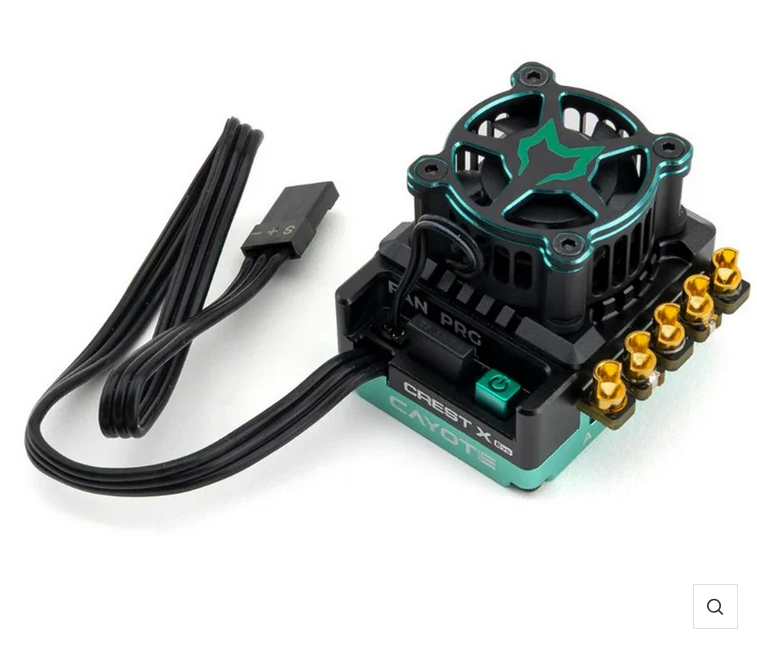

Cayote Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC CYEA11005

High-Performance Crest X Evo ESC

The Cayote Crest X Evo 1/10 160A Sensored Brushless Mod Competition ESC is the next evolution in Cayote's proven racing technology. Built with direct input from top professional drivers and extensively tested under the most demanding racing conditions, the Crest X Evo is designed to push competitive performance to the next level. With enhanced processing power, advanced cooling, and expanded customization options, this ESC delivers unmatched control and efficiency. Whether you're chasing podiums or looking to fine-tune every detail of your setup, the Crest X Evo provides the precision and reliability needed to dominate the track.
Seamless Power and Flexibility

The Crest X Evo features intelligent sensored/sensorless mode switching, giving racers the ability to adapt to varying conditions with smooth, uninterrupted transitions. In sensored mode, precise rotor detection ensures ultra-smooth handling, while sensorless mode offers simplified, efficient operation. Combined with up to 64° of Boost and Turbo timing, the Evo delivers explosive acceleration and finely tuned throttle control for every launch and corner exit.
Advanced Cooling and Processing Power

Engineered for consistent performance, the Crest X Evo is equipped with a four-vent metal-framed cooling fan that maximizes airflow and keeps internal components clean and stable. At its core is a 32-bit Cortex-M4 processor running at 108MHz-five times faster than the original Crest X-enabling rapid calculations, superior braking precision, and stronger response under high-demand conditions. This ensures reliable operation and unmatched performance, even during intense competition.
Customization and Safety Features

Racers can personalize their performance with adjustable throttle and brake PWM frequency settings, accessible via the Xlink program box or wirelessly through the BTUNE app. Safety is prioritized with a full suite of protection systems, including over-temperature, low voltage, stall, fail-safe, and reverse polarity protection. Together, these features ensure the Crest X Evo not only delivers top-tier performance but also maintains long-term durability and reliability.
Features:

160A continuous / 1100A peak current handling
Seamless sensored/sensorless mode switching
Up to 64° Boost and Turbo timing
High-performance 32-bit Cortex-M4 processor at 108MHz
Metal-framed cooling fan with four-vent design
Adjustable throttle and brake PWM frequencies
Wireless tuning and data logging with BTUNE app
Multiple protection systems for safety and reliability
ROAR approved for compliance with sanctioned racing standards
Designed for 1/10 scale buggies and touring cars

Specifications:
Suggested Application 1/10
Motor Type Brushless - Sensored/Sensorless
Input Voltage 2S LiPo (7.4V)
Continuous Current 160A
Peak Current 1100A
Dimensions (LxWxH) 1.49x1.49x1.18in (37.9x37.8x30mm)
Weight 1.94oz (55g)
Motor Limits -
BEC Voltage 6V/7.4V
BEC Continuous Current 8A
ROAR Approved Yes
Programmable Yes/BTUNE Wireless App
