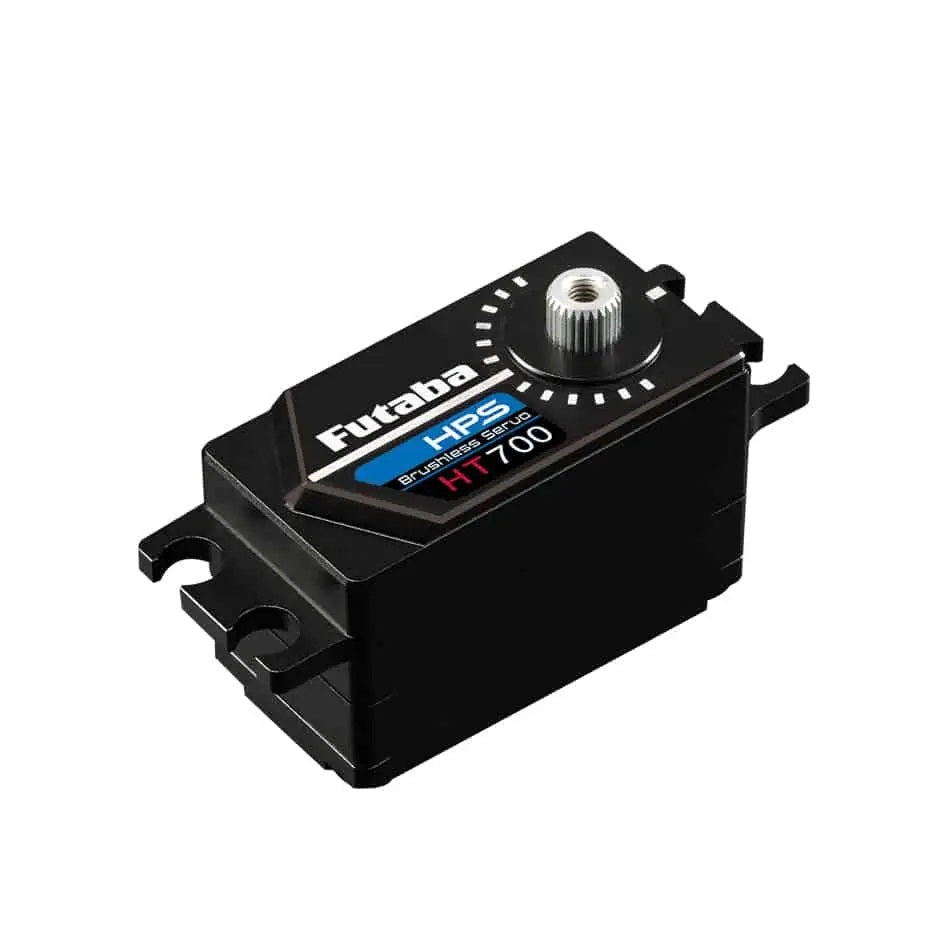

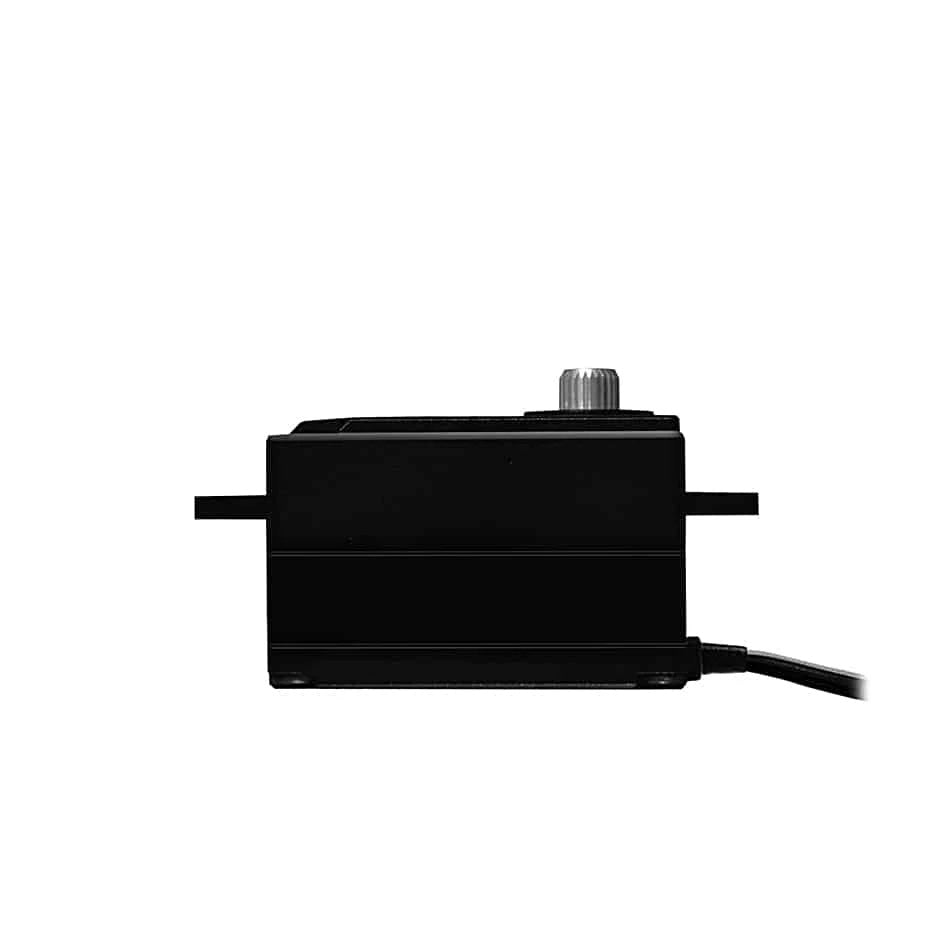

Futaba HPS-HT700 S.Bus2 High-Voltage Low-Profile Heli Tail Servo 01102378-3

HPS-HT700 S.Bus2 High-Voltage Low-Profile Heli Tail Servo

High Performance Tail Servo with Brushless Motor (1520uS/760uS switchable)

NO DRY BATTERY USE

Features:

    Suitable for RC helicopters 500-800 3D/F3C
    Programmable/HV Brushless Servo.
    Custom New high power Brushless Motor.
    Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3 .)
    Programmable and compatible with S.Bus and S.Bus2 systems.
    Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
    Upper/middle/bottom: Aluminum Case

Specifications:

    Speed: 0.045sec/60deg(7.4V); 0.05sec/60deg(6.6V)
    Torque: 9.6kgf/cm(7.4V); 8.6kgf/cm(6.6V) 133.3ozf/in(7.4V); 119.4ozf/in(6.6V)
    Dimensions/Weight: 40.5x21.0x26.2mm/54g (1.59x0.83x1.03in)
    Rated Voltage: DC 6.0V-7.4V
    Operating Voltage: DC 4.8-8.4V
    Hobby: Helicopter
    Features: S.Bus, S.Bus2, Brushless, HV, Metal Case
    Product: Servo
    Servo Size: Low Profile
