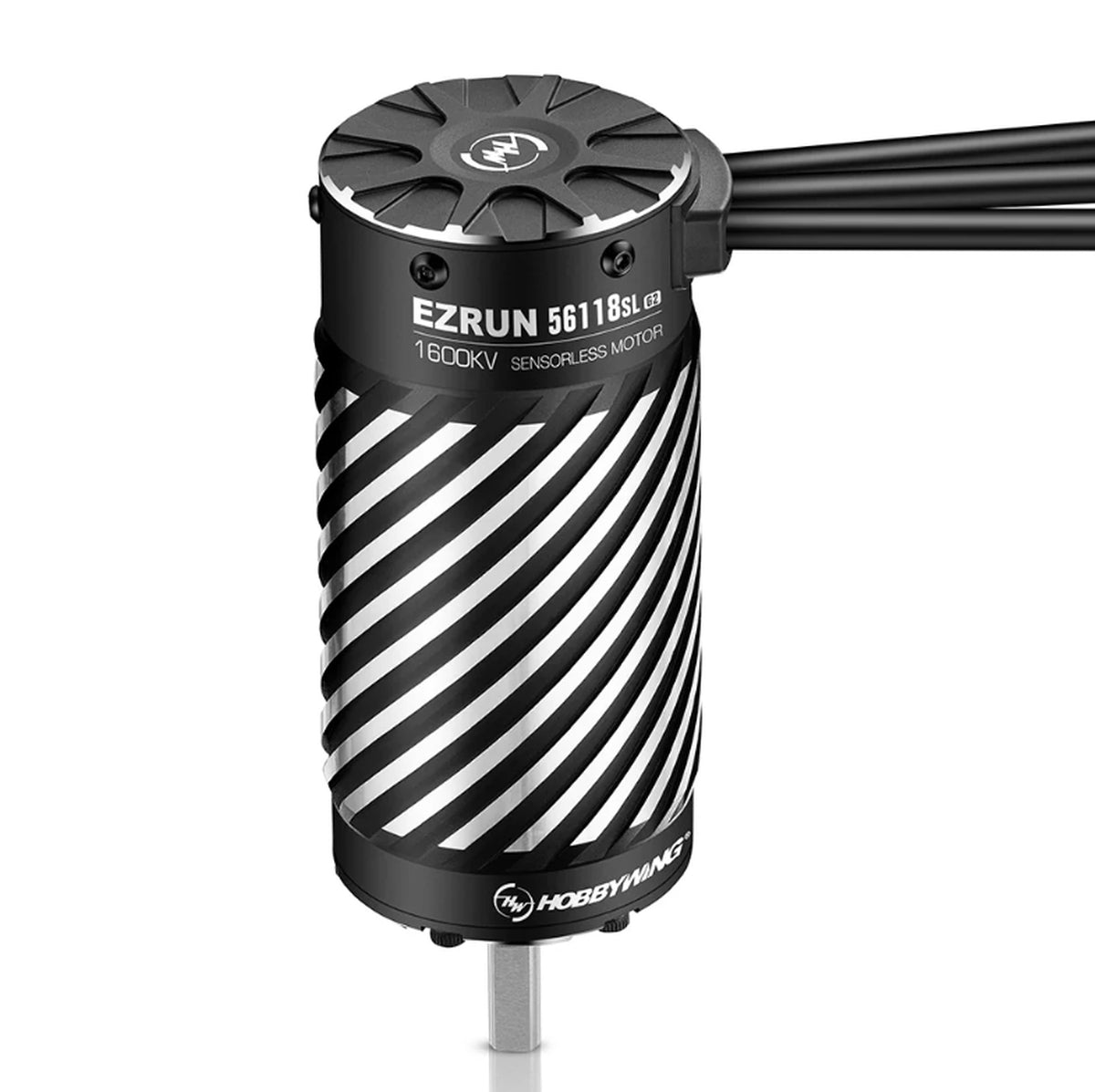

Hobbywing Ezrun MAX 56118SL 1600KV G2 Motor (Speed) 30402905

Unleash Ultimate Speed

Features:

Exceptional Power and Speed: The motor delivers high power output and supports high RPM, making it an ideal choice for high-speed applications.
Optimized ESC Compatibility: Designed for seamless integration with the EzRun MAX5 HV Plus G2 ESC, enabling higher speeds and increased power output when paired.
Effective Heat Dissipation: The motor features a grooved design for effective heat dissipation, reducing temperature increases and prolonging high-power, high-torque output.
Durable Construction: Built with premium materials, including CNC-machined aluminum housing, top-tier bearings, ultra-thin silicon steel laminations, high-temperature-resistant oxygen-free copper wires, carbon fiber-wrapped explosion-resistant rotor, and high-strength alloy output shaft. These features ensure sustained high performance over time.

Specifications:

KV Value: 1600KV
LiPo Cells: 6-12S
No-load Current: 16A
Outer Diameter/Length: 56mm(2.2in)/118mm(4.65in)
Shaft diameter/Exposed shaft length: 8mm(0.315in)/30mm(1.18in)
Bearing Size(mm): Front: D22*D8*T7 Rear: D19*D8*T6
Pole: 4
Weight: 1270g
Application: 1/7 and 1/8 vehicles for Extreme Speed
