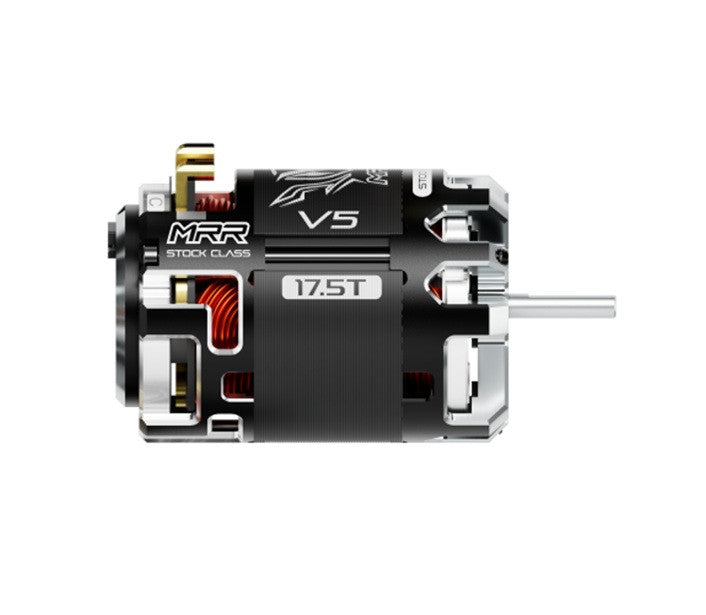

Maclan MRR V5 17.5t (Turn) Brushless Competition Motor (ROAR Approved) MCL1104

This is Maclan MRR V5 Sensored Competition Motor.

Maclan Racing proudly presents the MRR V5 Stock Spec Competition Motor Series, our next-generation platform developed under the latest 2025 ROAR rules. Every detail of the V5 has been refined through extensive engineering and race testing to deliver stronger torque, smoother control, and improved efficiency for today's demanding RC racers.
Key Features

Next-Gen ROAR-Legal Stator Design
Newly engineered stator geometry built from fresh 2025 ROAR-spec laminations for improved magnetic balance and reduced core loss. The result is crisper throttle response, higher RPM, and superior temperature stability.

Enhanced Cooling and Airflow
A redesigned CNC-machined endbell with high-flow cooling ports reduces operating temperature by up to 25 °F compared with the previous generation.


Performance You Can Feel
From improved low-RPM smoothness to higher efficiency at peak output, the V5 translates every amp into usable traction. Whether you race on-road, off-road, or oval, the difference is immediate.

Detail Specifications
Case Length: 51.80mm±1mm

Case Diameter: 36mm

Shaft Extension: 14mm

Shaft Size: 3.17mm

Weight: 145g±2g

Front Bearing Size: ID: 3.175mm OD: 9.525mm H: 3.9675mm

Rear Bearing Size: ID: 3.175mm OD: 7.9375mm H: 3.5712mm

Poles: 2-Pole

Default Rotor: 12.5mm Premium Ultra High Torque (Purple)
