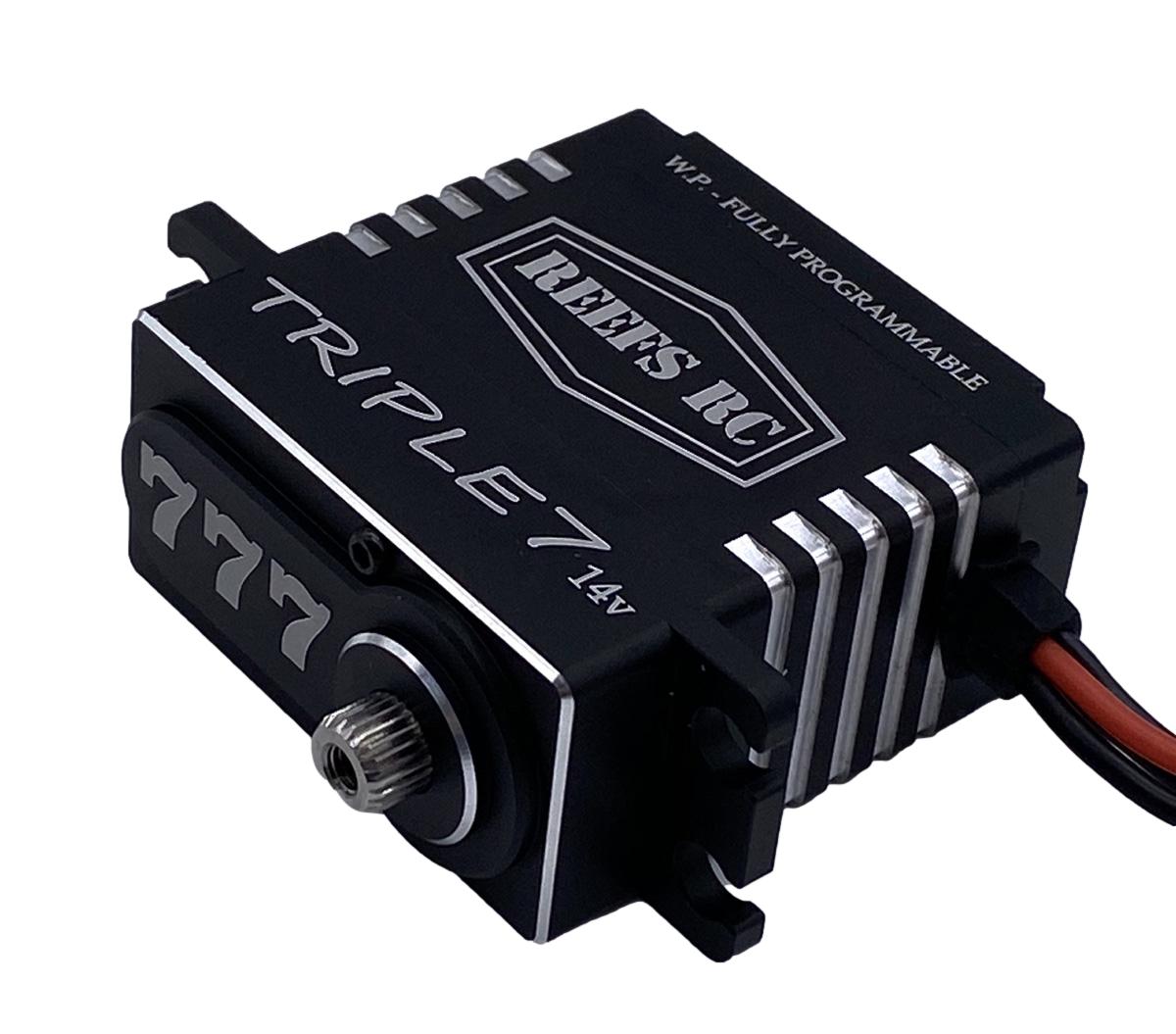

Reefs 777 Triple7 14V High Torque High Speed Brushless Programmable Servo

Out of stock
SKU: SEHREEFS777
(0)
$157.77

Share this product with your friends on Facebook by clicking here.

High Torque High Speed Brushless Servo

SUBMARINE WATERPROOF: 7 Point Seals

Magnetic Angle Sensor

Pulse Width Modulation Control

Fully Programmable w/ REEFS Software

REEFS LINK required for Programming

Voltage 10V - 14V

Internal: Steel Gears / All CNC Aluminum Casing

Bearing Type: 3 Ball Bearings / Weight: 3.12oz

Dimension: 1.57 x .78 x 1.63 (LWH)

Torque: 666oz @11.1v/ 700oz @12.0v/ 777oz @14v

Speed: .10sec @11.1v/.09sec @12.0v/.08sec @14v

Spline: 25T / Dead Band Width: 2¦Ìs

Software download available

Warning: Do not leave servo plugged into battery when not operating RC. Always turn the RC car off first, then remote. DO NOT USE OVER 14v. YOU WILL VOID YOUR WARRANTY. 8mm screw required for horn.
