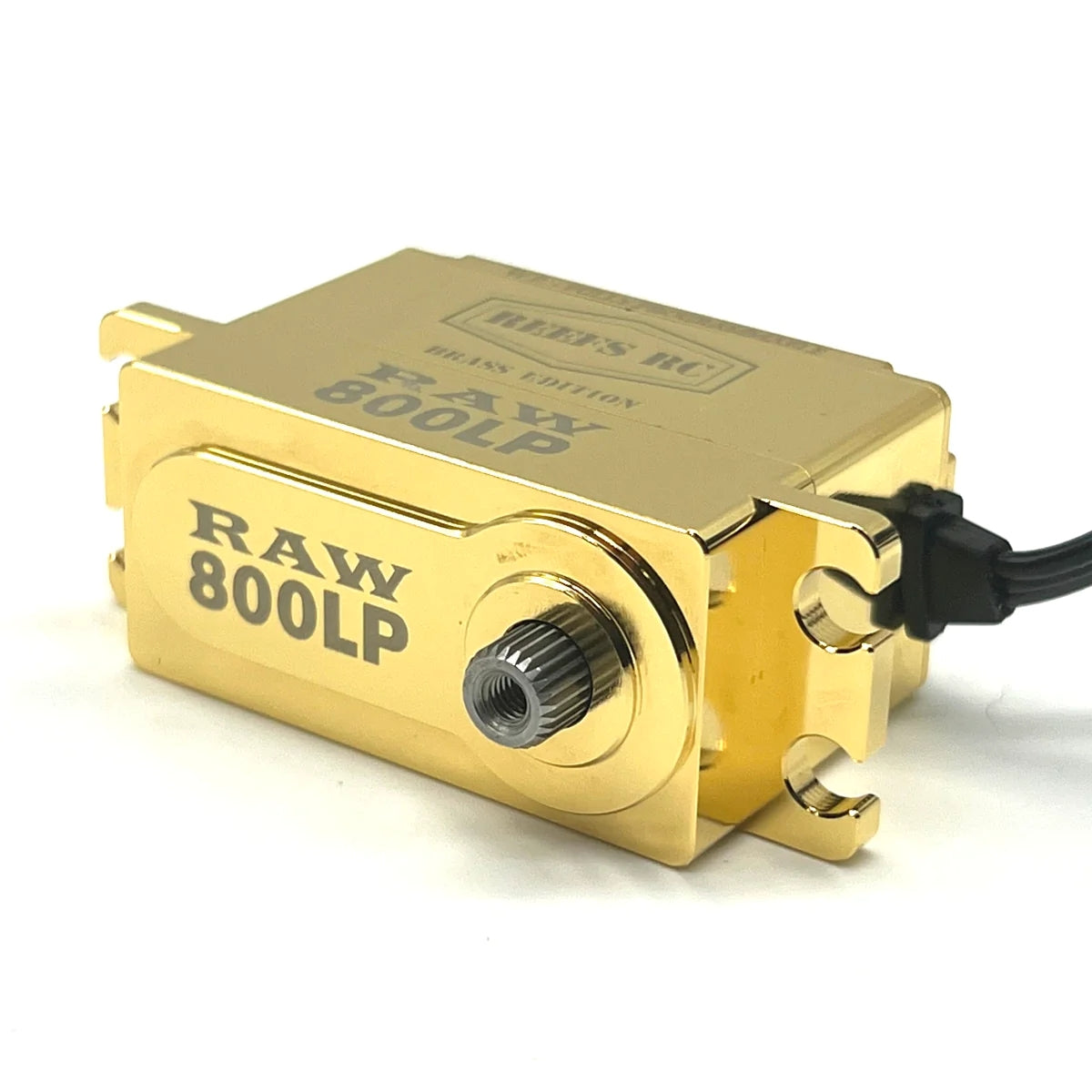

Reefs RAW 800 LP Brass Edition Brushless Low Profile Servo REEFS160

RAW 800 LP Brass Edition, Fully Programmable, Brushless Low Profile Servo

Note: BEC not required, but recommended for best performance.

Specifications:

    Motor: 4 POLE - Brushless
    Submarine Waterproof: 7 Point Seals
    Positioning: Magnetic Angle Sensor
    Voltage: 4.8V - 8.4V
    Programmable: REEFS LINK required for Programming (Optional)
    Gears: Steel Gears
    Spline: 25T / Dead Band Width: 2 µ
    Case: CNC Aluminum Casing
    Bearing Type: 2 Ball Bearings
    Weight: 2.3oz / 66gm
    Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
    Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
    Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
    Unload Current: 500mA @ 6.0V, 540mA @ 7.4V, 580mA @ 8.4V
    Load Current: 6000mA @ 6.0V, 6800mA @ 7.4V, 7500mA @ 8.4V
