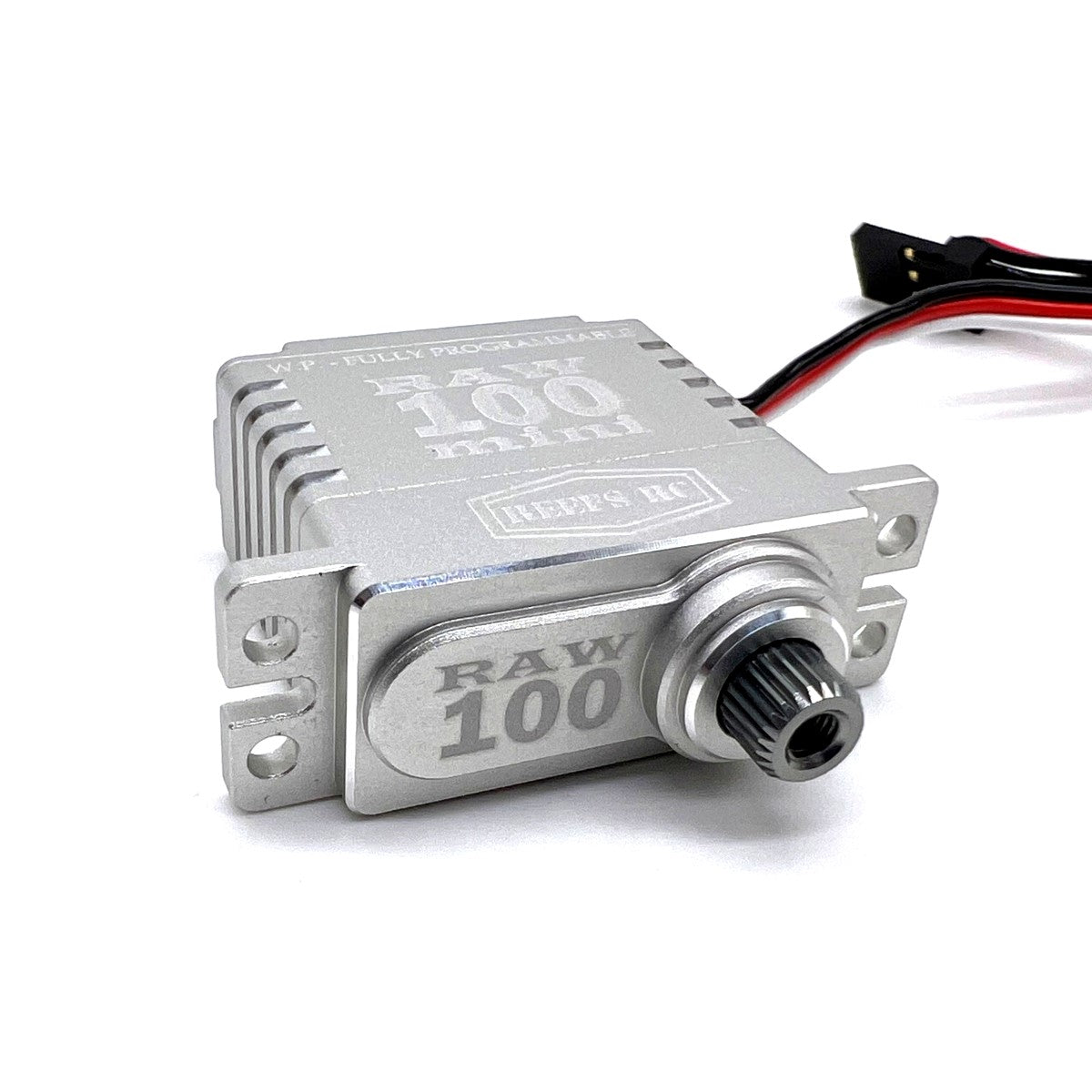

Reefs RC Raw 100 Mini Servo Programmable REEFS134

RAW 100 Mini Servo Programmable

High Torque High Speed
Mini Coreless Servo
SUBMARINE WATERPROOF
Magnetic Angle Sensor
Pulse Width Modulation Control
REEFS LINK required for Programming
(Optional)

Voltage: 6v-8.4v
All Metal Gears
CNC Aluminum Casing w/ Heat Sink
Bearing Type: 2BB
Temp Rate: -15C*~ +70C
Weight: 1.05oz / 30g
Dimension: (LWH)
1.16 x .55 x 1.14 in
29.5 x 14 x 29 mm

Torque: 85oz @ 6.0v
95oz @ 7.4v
103oz @ 8.4v

Speed: .11sec @ 6.0v
.10sec @ 7.4v
.08sec @ 8.4v

Spline: 25T Standard
Dead Band Width: 2��s
Unload Current:
180mA @ 4.8V 200mA @ 6.0V 230mA @ 7.4V 260mA @ 8.4V
Load Current:
1200mA @ 4.8V 1400mA @ 6.0V 1500mA @ 7.4V 1800mA @ 8.4V
BEC Not Required, Recommended
for Max Perf.
