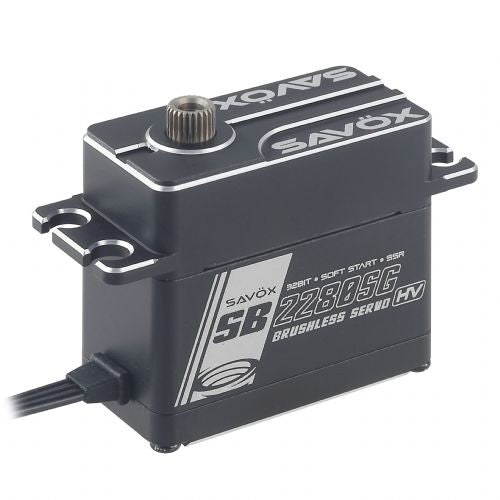

Savox SB-2280SG 1/8 scale HV Brushless Steel Gear Monster Torque Plus Servo

High Voltage Brushless Steel Gear Monster Torque Servo with Soft Start, 0.12sec / 833.2oz @ 8.4V

The Savox SB-2280SGP High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

    Unique steel gear train.
    Capable of HV operation.
    Brushless motor for smooth operation and efficiency.
    Ideal for 1/8 buggies, crawlers, and large-scale aircraft.

Specifications:

    Torque @ 6V—40.0kg-cm/555.5oz-in
    Torque @ 7.4V—50.0kg-cm/694.4oz-in
    Torque @ 8.4V—60.0kg-cm/833.2oz-in
    Speed @ 6V—0.17 sec/60°
    Speed @ 7.4V—0.14 sec/60°
    Speed @ 8.4V—0.12 sec/60°

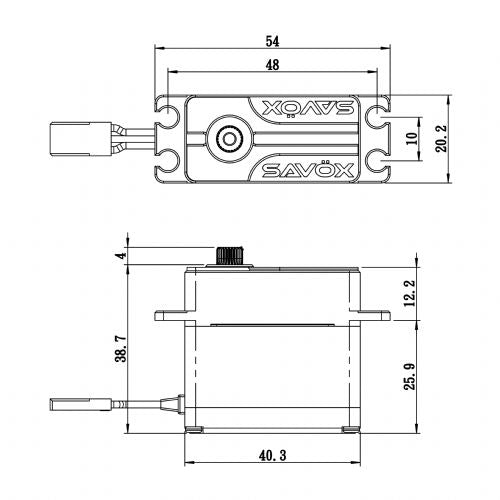

    Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
    Weight: 83g

Technical Specs:

    Operating Temperature: 14°—122°F (-10°—50°C)
    Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
    Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V, 8400mA @8.4V
    Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
    Wire Length: 300 ∓ 5mm
    Output Gear Spline: 25 Tooth
    Operating Travel: 100° (1000—2000µsecond)
    Neutral Position: 1500µsecond
    Pulse Width Range: 800—2200µsecond
    Maximum Travel: Appx 130° (900—2100µsecond)
    Refresh Rate: 333 Hz
    Motor Type: Brushless
