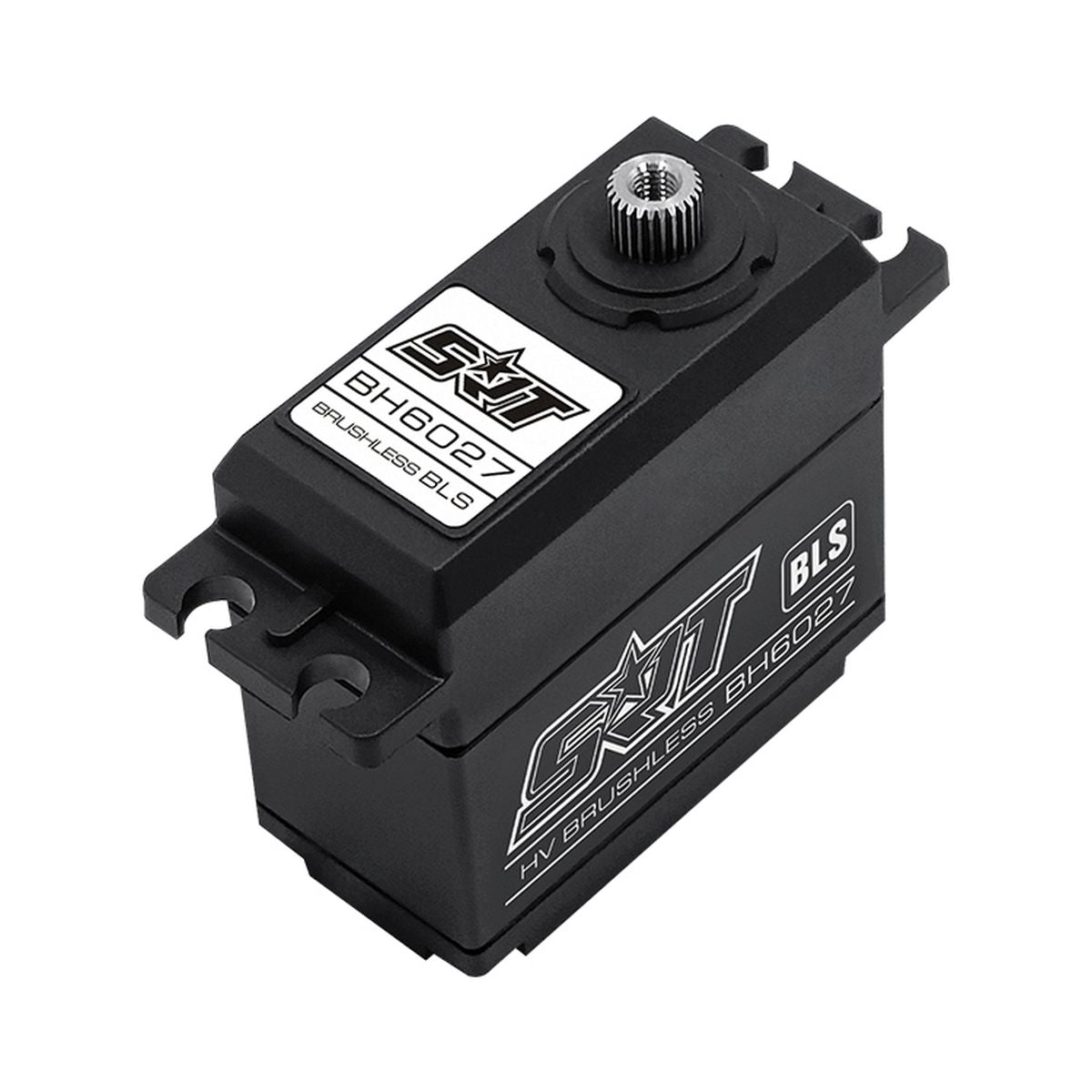

SRT Standard HV Brushless Digital Servo for 1/10 or 1/8 Scale BH6027

Standard HV Brushless Digital Servo, .075sec / 375oz @ 8.4V

The latest generation of SRT servos provides you with the performance you need for any 1/10th to 1/8th scale vehicle application. They are standard size servos for High-Voltage applications up to 8.4V. Featuring SRT innovations like all metal servo mounting tabs to keep them in place through the most extreme conditions, SRT servos will fit most any application.

Features:

Ideal for 1/10 on road applications
Incredible efficiency and low power consumption
Titanium & Aluminum gears for precision and durability
Standard dimension makes it perfect for vehicles that can benefit from a high quality servo
2 usec Dead Band
Superior Holding Torque
1-Year Limited Warranty

Specifications:

Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Titanium & Aluminum
Control System: Pulse Width Control
Working Frequency: 1520 Is / 330hz
Operating Voltage: dc6.0-8.4v
Operating Temperature Range: -10 to + 60 degree
Operating Speed (6.0v): 0.11 sec/60 degrees at no load
Operating Speed (7.4v): 0.08 sec/60 degrees at no load
Operating Speed (8.4v): 0.075 sec/60 degrees at no load
Stall Torque (6.0v): 20.0kg.cm (277.7 oz/in)
Stall Torque (7.4v): 25.0kg.cm (347.2 oz/in)
Stall Torque (8.4v): 27.0kg.cm (375.0 oz/in)
Potentiometer Drive: Direct Drive

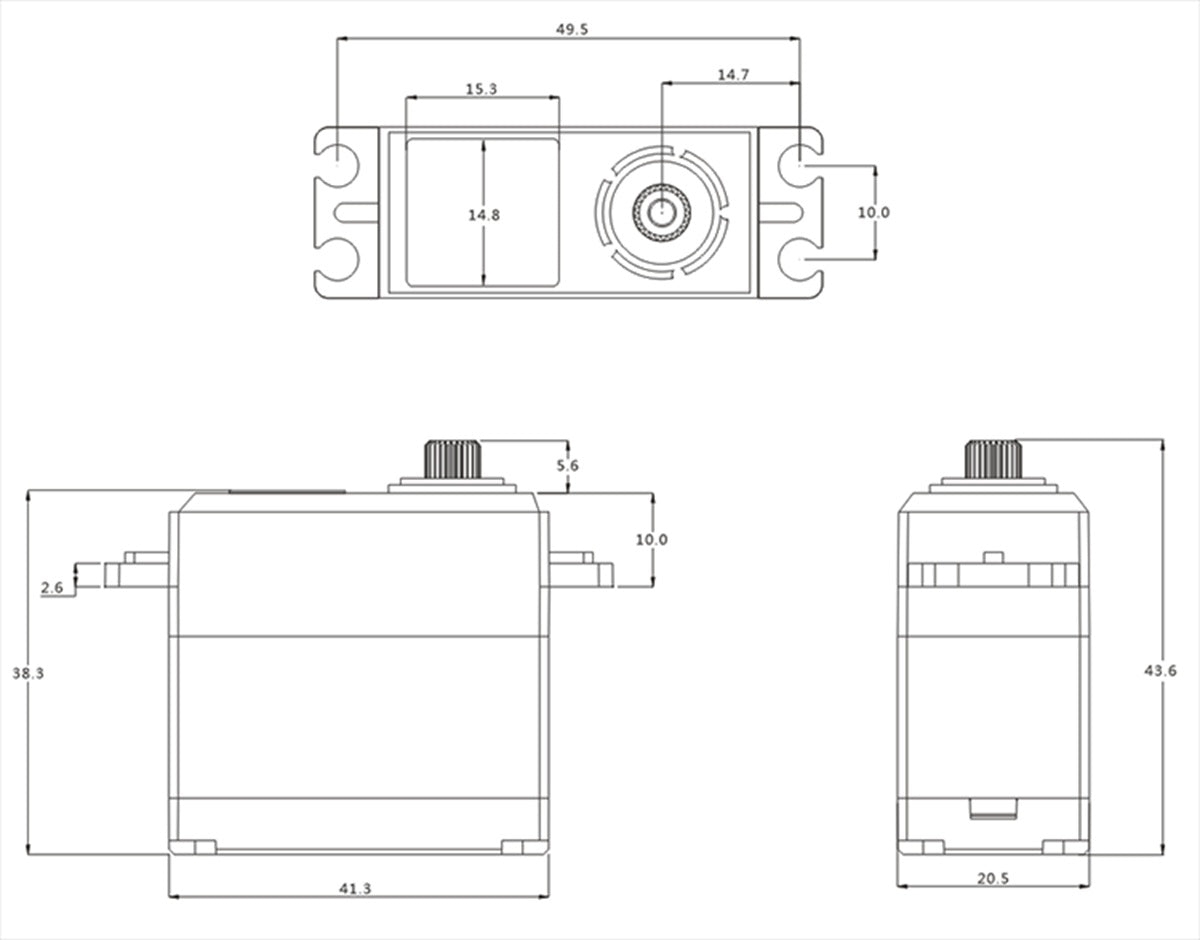

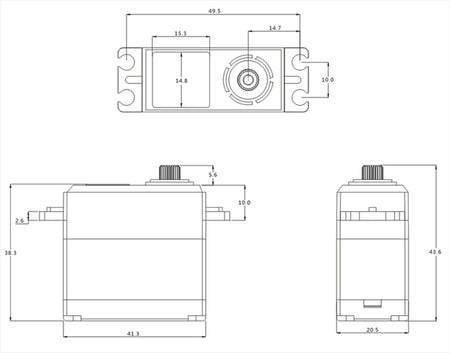

Dimensions: 41.3x20.5x38.3 mm /1.63x0.80x1.51 in
Weight: 69.0g (2.43 oz)
Connector Wire Length: jr 300 mm
