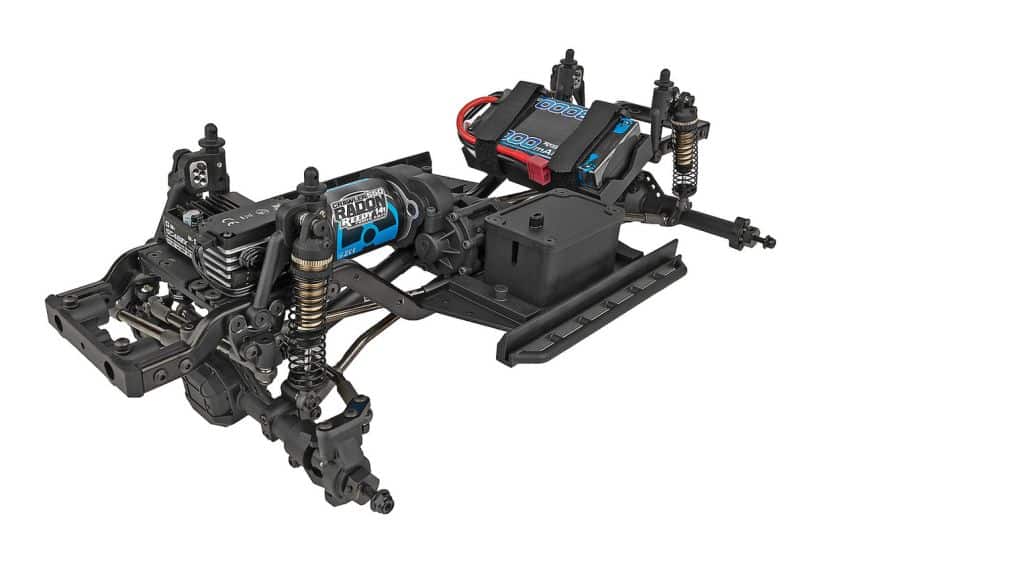

Team Associated Element RC Enduro Trail Truck Builder's Kit 3 40135

With added features and updated materials, the new and improved Enduro Builder's Kit 3 is the perfect platform for any build.

They've updated the Builder's Kit yet again by including our GKS shock towers in front and rear. Their shock mount inserts provide the ability to adjust shock angle, droop, and vehicle ride height without affecting spring preload. Matched up with the shock mount inserts are their race-proven ultra-smooth Factory Team bronze shocks with black plastic bleeder caps and collars-perfect for traversing rough terrain. Along with the updated shock towers, they've included the GKS aluminum track bar mount that is bolted directly to the frame rails. This makes the front suspension more rigid and flex-free with a more precise steering feel. Also included are updated Factory Team 12.3 and 12.8-inch wheelbase high-clearance links with black nitrate finish and durable Factory Team steel pivot balls for smooth articulation.

Required to Complete:

1:10 scale Radio-controlled car 540-size electric motor with 48-pitch pinion gear
1:10 scale electronic crawler speed controlOn-Road
LiPo radio-controlled car battery pack (based on your speed control)
Radio control battery charger (for the battery type chosen above)
2-channel RC car surface transmitter and its batteriesReady-To-Run *
2-channel receiver160mm (6.3in)
Steering servo68mm (2.68in)
Body and paint
Wheels with 12mm hex mounting
Tires
Other helpful items needed: FT Body Scissors (#1737), thread-locking compound (#1596), FT Body Reamer (#1499), FT Hex/Nut Driver set (#1519), Hobby Knife, Needle Nose Pliers, Wire Cutters, Soldering Iron, Calipers or Precision Ruler

Features:

Solid axle front suspension
Universal front drive axlesOn-Road
One-piece rear axle design
Behind-the-axle (BTA) steering
Aluminum steering platesReady-To-Run *
Integrated servo winch mount160mm (6.3in)
CMS (Chassis Mounted Servo)68mm (2.68in)
Stamped steel frame rails
Adjustable bumper mounts
Enclosed water-resistant receiver box
Injection-molded adjustable width rock sliders
Threaded aluminum shock bodies
Aluminum motor plate
Optimized ball cups for more fluid axle articulation
Telescopic driveshafts front and rear
Extruded aluminum driveshaft splines
5mm heavy duty FT high clearance links
Machined input pinion gear
Metal ring gear
Machined steel top shaft
Metal ball bearings included
Steel 25T servo horn

Specifications:

Power Source: Electric
Terrain: Off-RoadOn-Road
Body Style: Truck Scale
Size: 1:10 Scale
Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)Ready-To-Run
Length: 462mm (18.19in)160mm (6.3in)
Width: 236mm (9.29in)68mm (2.68in)
Wheelbase: 313mm (12.32in)
Weight: Varies
Internal Gear Ratio: Varies
Drive: 4WD
