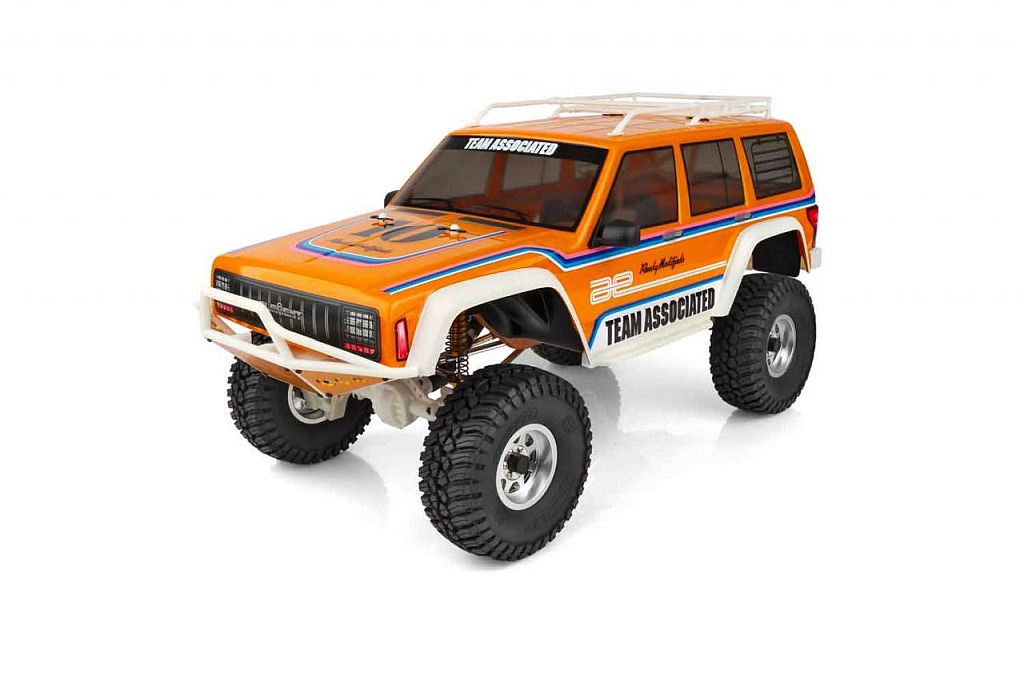

Team Associated RC10 Trail CrawlerTruck Portal Kit 40137

A performance rig built to endure. When hitting the trail, you want to do it with confidence and the answer is the RC10 Trail Truck Portal Kit!

At the heart of the RC10 Trail Truck Portal Kit is our revolutionary Stealth X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth X features the ability to adjust the rear drive ratio independently of the front drive across three levels: stock overdrives the front end 5.7%, option 1 provides a one-to-one drive ratio front-to-rear (available separately), and option 2 overdrives the front end 11.83%. Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.

The RC10 Trail Truck Portal Kit features new high-clearance portal axles. These new portal axles include all-metal gears, ball bearings, and a new larger pocket for a heavier-duty inner input bearing. With almost an inch more clearance than our standard straight axles, these axles are a perfect fit for the Enduro line-up.

With all this packed in one box, we know the RC10 Trail Truck Portal Rock Crawler Kit is ready for the trail - Are you?

Features:

NEW high-clearance portal axles
CMS (Chassis Mounted Servo)
Adjustable front track bar
Universal front drive axles
Gold colored stamped steel frame rails
12mm wheel hexes
Adjustable front bumper mount
Two battery boxes
Gold anodized aluminum motor plate
Adjustable body posts
Optimized ball cups for more fluid axle articulation
Adjustable rear shock tower mount positions
Telescopic driveshafts front and rear
Extruded aluminum driveshaft splines
Splined front axle with adjustable caster
Metal gears throughout axles
Increased inner axle input bearing
Machined steel top shaft
Steel servo horn
Heavy-duty 5mm diameter steel links
Metal ball bearings included
RC10 Trail Truck body thermoformed in high-strength polycarbonate
Polycarbonate inner fenders
Single-piece body with roof rack
Clear windows
Adjustable injection-molded front and rear bumpers
Realistic styling
Licensed 1.9"x4.65" General Grabber X3 tires
Licensed 1.9" Method 701 Trail Series beadlock wheels

Specifications:

Power Source: Electric
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. )
Length: 462mm (18.19in)
Width: 236mm (9.29in)
Wheelbase: 325mm (12.8in)
Weight: varies
Internal Gear Ratio: varies
Drive: 4WD
Product Status: Active
