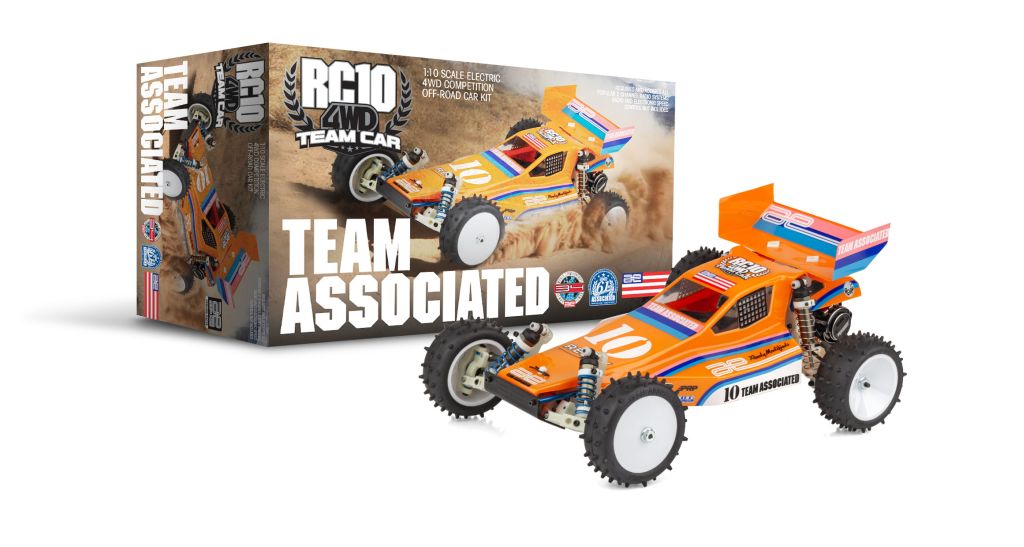

Team Associated Team Car RC10 4wd Buggy Kit 1/10 Scale 6046

The RC10 started as the vision of Team Associated's founder Roger Curtis (RC) and became one of the most iconic RC cars in history.

At the inaugural IFMAR Off Road World Championships, Jay Halsey took first place with his RC10 in the 2WD class, but did you know he also raced a prototype 4WD RC10 in the 4WD class and took second place?

Team Associated never advanced that prototype 4WD and instead focused on 2WD. But what if Team Associated had developed a 4WD RC10? You'd get the RC10 4WD Team Car off road buggy!

Our team of engineers took the iconic RC10, the knowledge of 4WD racing from the B74, and created the RC10 4WD. No more having to buy an RC10 kit, a conversion kit, and random parts. Now you can have a genuine Team Associated RC10 4WD that is meant to be raced, with all the parts in one box. All you need to do is add electronics and hit the track!

Required to Complete:

1:10 scale 540-size electric RC car motor
1:10 scale radio control electronic speed control
7.4V-7.6V 2S LiPo with "shorty" battery dimensions (standard or low-profile height)
Battery charger (for one of the batteries mentioned above)
2-channel RC surface transmitter and its batteries
Lexan specific spray paint for body
Steering Servo

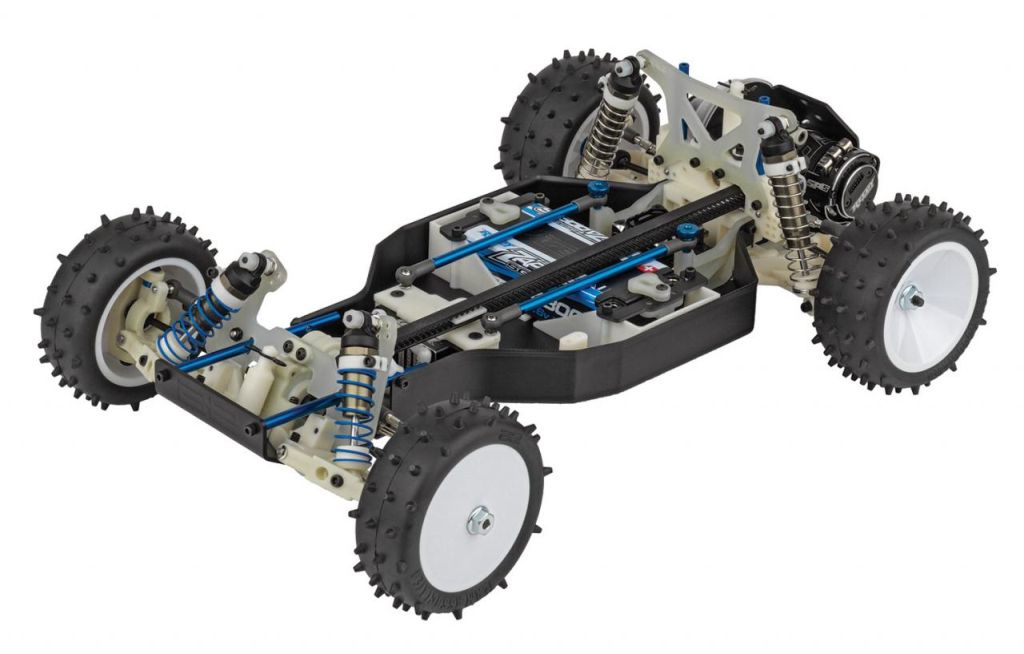

Features:

New updated belt guide
New updated chassis stiffener system
New thumb ball nuts allow for easy battery access
New taller pulley guides
4WD black anodized 6061-T6 aluminum monocoque tub chassi
Black anodized noseplate and motor plate
Updated bleeder shock caps
Fully adjustable four-wheel independent suspension
Protech clear body with gas cutout template
Long travel, fluid-filled, hard-anodized aluminum coil-over shocks Powerful rear disk brakes
Race proven front and rear Stealth transmissions
Adjustable ball differentials front and rear
Rear 2.2" wheels included
HD metric ball studs throughout
Race proven V2 slipper clutch system
Exceptional ground clearance with low center of gravity
Vintage 4WD spike tires included
Clear Viper body with driver figure
4WD specific shock towers front and rear
Precision bearings throughout
Fits 6-cell NiMh and 2S LiPo battery packs
Adjustable 3.5mm turnbuckles all around
Front and rear CVA driveshafts
Durable low friction center belt and tension system
Long front arm geometry
All new front caster and spindle assembly designed for RC10 4WD
Updated rear bulkhead and chassis stiffener
Carbon fiber rear transmission brace
Front 2.2" 12mm hex wheels included
All new 4WD specific bell crank system
5.5" high-downforce polycarbonate race wing included


Specifications:

Power Source: Electric
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:10 Scale
Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
Length: 381mm (15in)
Width: 241mm (9.49in)
Wheelbase: 273mm (10.75in)
Weight: Varies
Internal Gear Ratio: 2.6:1
Drive: 4WD
