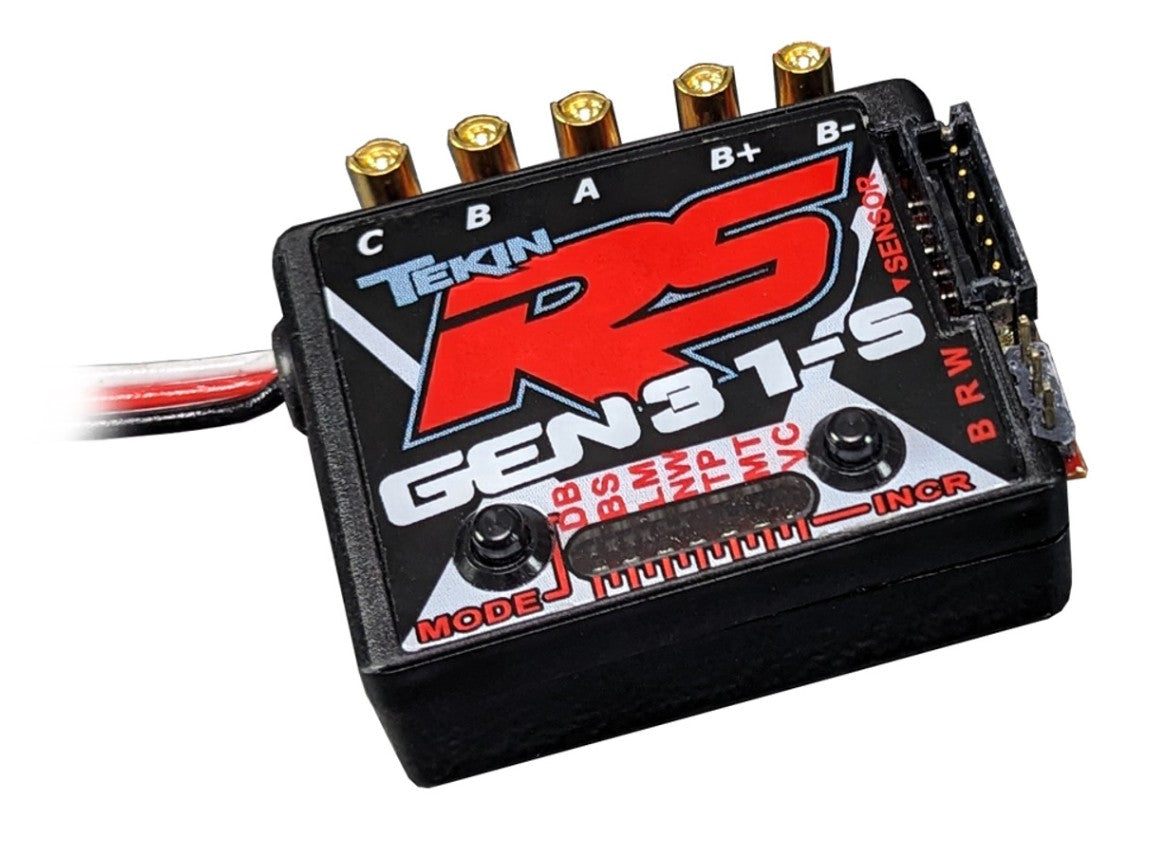

Tekin Tekin RS GEN3 1S Brushed/ Brushless ESC Electronic Speed Control TT1162

The RS GEN3 1S brings a suite of enhanced features including better power handling and improved tuning features that give you unmatched adjustability. The built-in Booster increases 1S LiPo voltage to appropriate BEC voltage, meaning you need no extra hardware to run 1S LiPo classes. Maintain superior control in all situations with state-of-the-art components, award-winning performance and proven reliability. The RS GEN3 1S gives you the tools to win!

Standard features include an updated HD solder post design for easy soldering, a High Voltage Adjustable BEC and HotWire compatibility for extensive tuning. Next generation components put more power at your disposal and new firmware make the RS GEN3 our smoothest, best-driving RS ever.

Specifications:

Controls: Forward/Brake/Reverse
Input Voltage: 1S LiPo / 4cell NiMH-NiCD
Motor Limit Brushless Mode 1S: 10.5 Turn 2-pole 36mm Can
Motor Limit Brushed 1S: 12 Turn 36mm Can
Max Current: 140amps per phase*
BEC: 6.0v / 7.4v @ 5.5amps
Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
Weight: .83oz / 23.5g

*per manufacturer specs

Features:

Integrated BEC Booster Circuit
QuickTune One Touch Programming
HD Gold Plated Solder Post Design
Adjustable Timing Settings *
Adjustable Torque Control *
Custom Power Profiles *
3rd Channel Input for On-The-Fly Drag Brake Adjustments
Adjustable Throttle and Brake Frequencies *
High Voltage Programmable BEC *
HotWire Programming Port *
Data Logging Capability *
On-Board LED Sensor Checker
On-Board LED Temperature Indicator
ESC Self Diagnostics with Error Codes
Fully Proportional Forward/Brake/Reverse
Brushless and Brushed Motor Drive
Sensored or Sensorless Operation
LiPo Safe with Custom Voltage Cutoffs *
Sensor Plug for Precise Commutation
HDAC: High Density Copper PCB's
Ultra-smooth and Precise Throttle and Braking Control

*requires HotWire sold separately
